Working Ranges mm
| a | Max. Digging Height | 5805 |
| b | Max. Dumping Height | 4070 |
| c | Max. Digging Depth | 3815 |
| e | Max. Digging Depth | 2762 |
| f | Max. Digging Reach On Ground | 5998 |
| g | Min. Swing Radius | 1650 |
Dimensions mm
| A | Overall Length | 6088 |
| B | Overall Width | 1960 |
| C | Overall Width | 2686 |
| D | 0verall Width Of Upperstructure | 1876 |
| E | Track Length | 2558 |
| F | Chassis Width | 1960 |
| G | Track Shoe Width | 400 |
| H | Track Length On Ground | 2035 |
| I | Track Gauge | 1560 |
| J | Counter Weight Clearance | 768 |
| K | Min. Ground Clearance | 393 |
| L | Min. Tail Swing Radius | 1650 |
| M | Track Height | 580 |
Key Spec

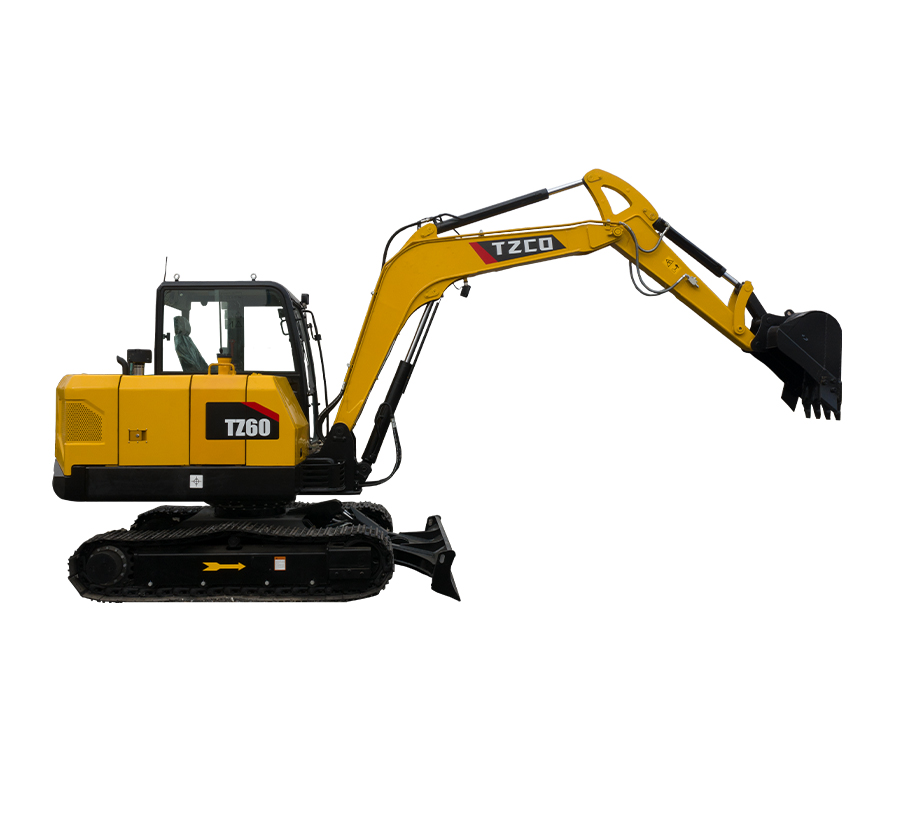

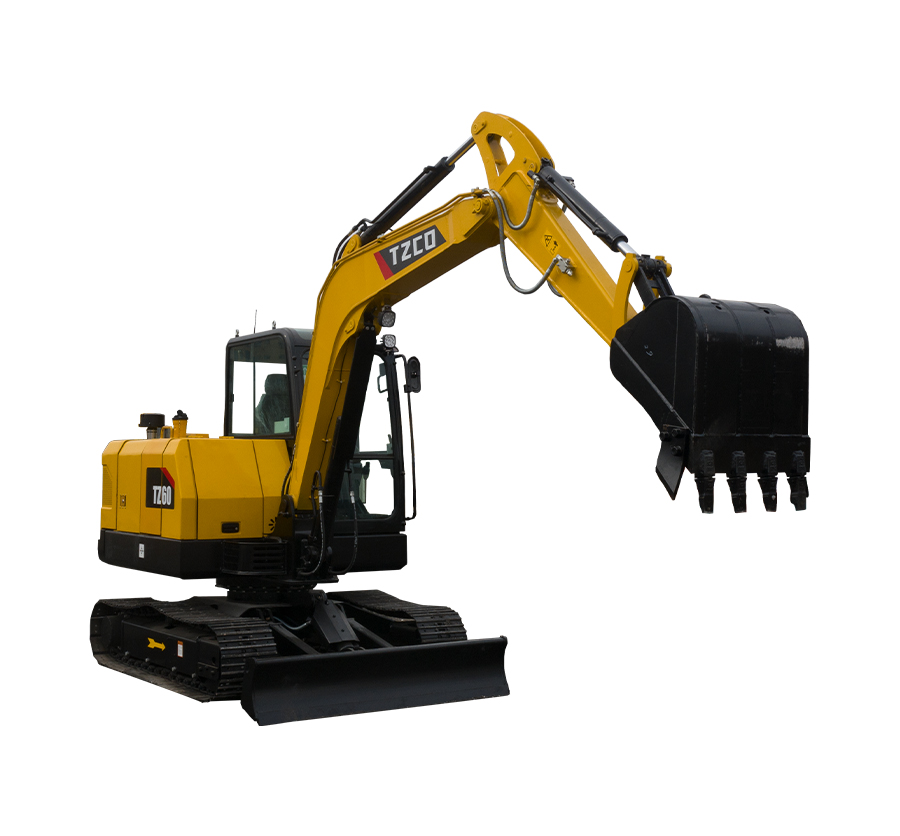

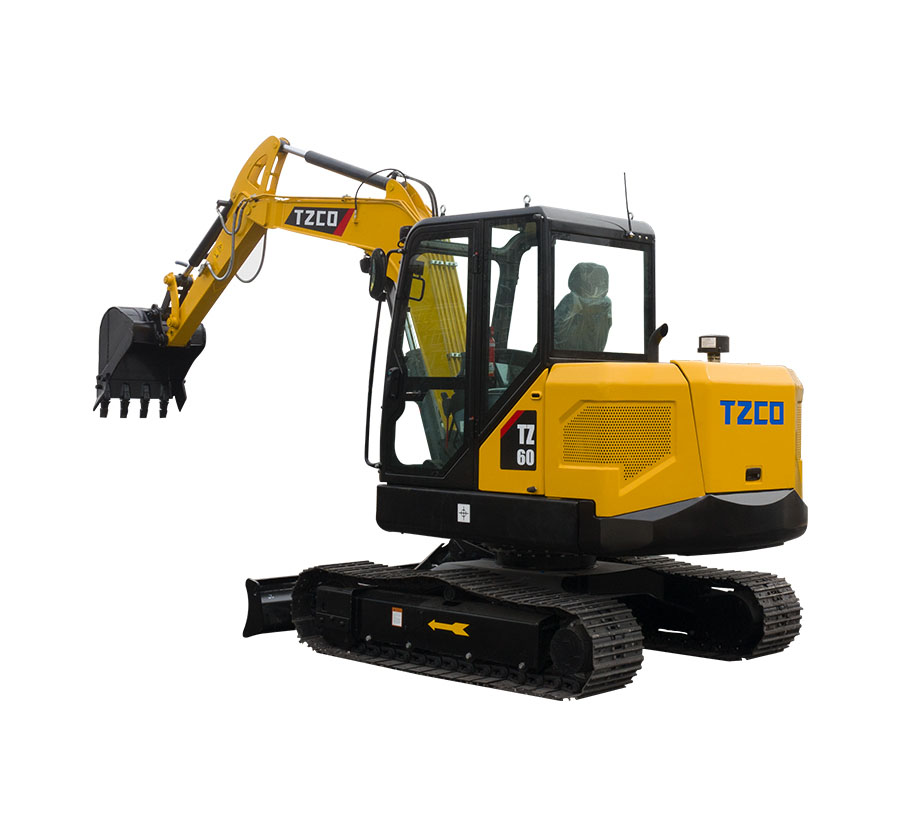

| Product Model | TZ60 | |
| Total Weight | kg | 6150 |
| Bucket Capacity | m³ | 0.23 |
Engine
| Engine Model | / | 4TNV94L |
| Direct Injection | / | √ |
| 4-Stroke | / | √ |
| Water Cooled | / | √ |
| No. Of Cylinders | / | 4 |
| Rated Power | kw/rpm | 35.9/2000 |
| Displacement | L | 3.054 |
Oil Capacity
| Fuel Tank | L | 128 |
| Hydraulic Tank | L | 80 |
| Engine Oil | L | 10 |
Hydraulic System
| Rated Flow Of Main Pump | L/min | 144 |
| Pressure-Main Valve | MPa | 21.5 |
| Pressure-Travel System | MPa | 21.5 |
| Pressure-Swing System | MPa | 21.5 |
| Pressure-Pilot System | MPa | 3.5 |
Main Performance
| Travel Speed (high/low) | km/h | 4.1/2.4 |
| Swing Speed | r/min | 11.9 |
| Gradeability | 。 | 35 |
| Ground Pressure | kPa | 33 |
| Bucket Digging Force | kN | 48 |
| Arm Digging Force | kN | 32 |
| Max. Traction Force | kN | 45 |
Standard
| Boom Length | mm | 3000 |
| Arm Length | mm | 1600 |
| Bucket Capacity | m³ | 0.23 |
